Description

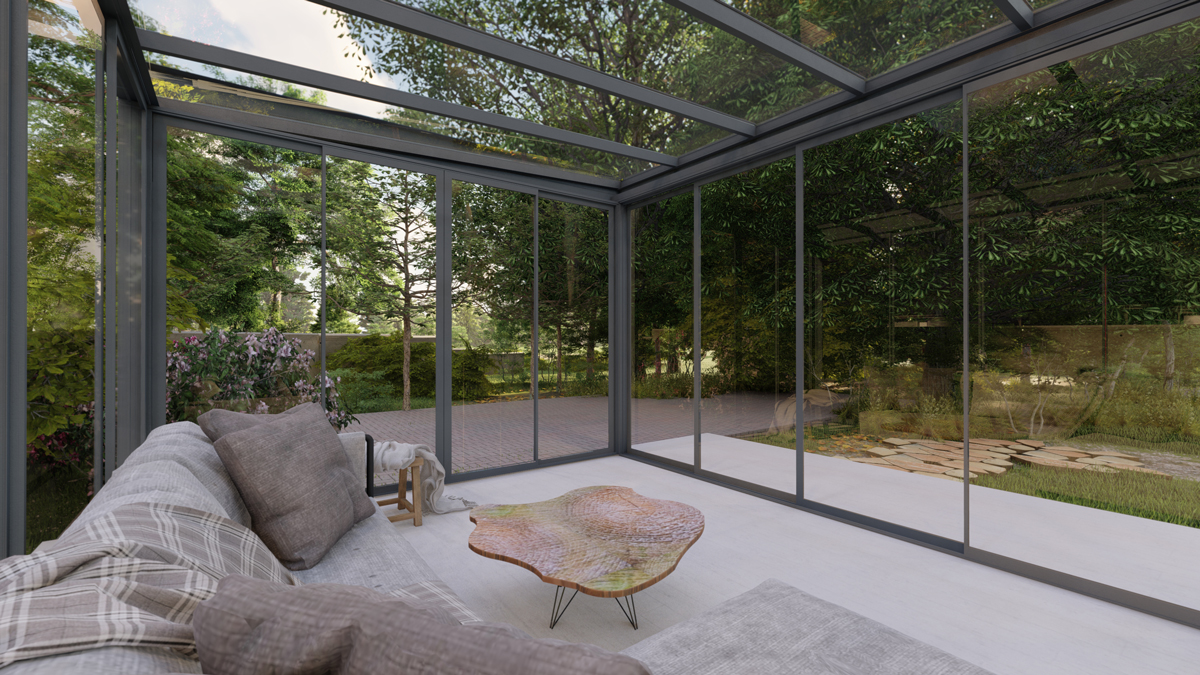

The Artos SSA 152 redefines open spaces by offering wide, transparent transition areas, making it an ideal solution for hotels, restaurants, and cafes. Its panels seamlessly stack over each other and can be positioned to the left or right, providing maximum flexibility in design. With a multi-point locking system, it ensures security from both inside and outside while maintaining a sleek and modern appearance.

Wide & Uninterrupted Openings: Creates spacious and transparent transition areas for an open, airy feel.

Flexible Stacking Mechanism: Panels slide and stack effortlessly to the left or right as needed.

Enhanced Security: Multi-point locking system offers safety and peace of mind from both inside and outside.

Elegant & Slim Design: Maximized glass area allows more natural light to flood in.

Durable & Refined Construction: High-quality aluminum profiles ensure long-lasting performance.

Effortless Sliding: Engineered for smooth, easy movement with minimal effort.

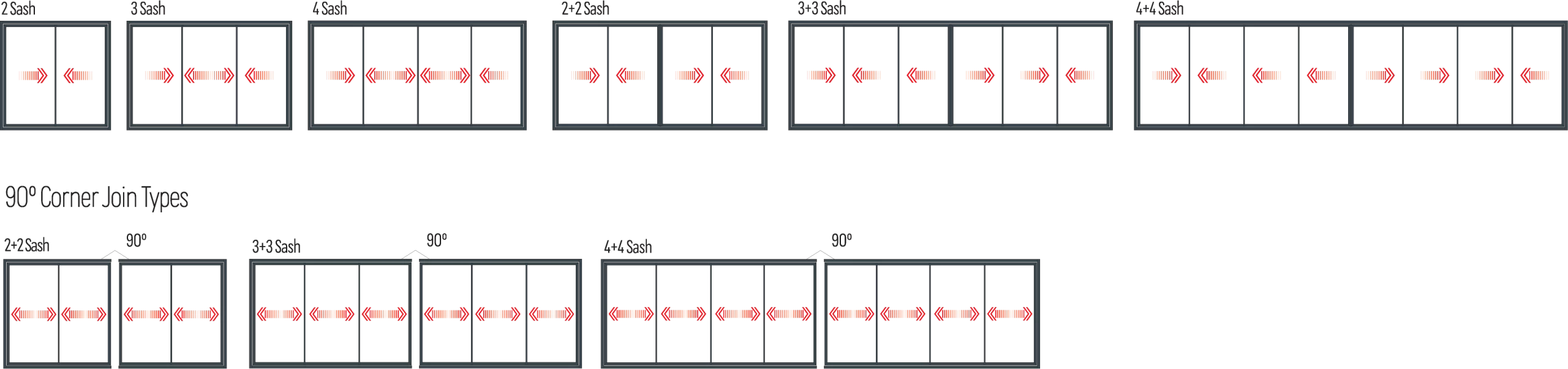

Opening Types

Technical Properties

Vent Profile Depth

26 mm

Vent Profile Height

63 mm

Maximum Vent Weight

75 kg

Maximum Vent Width

1000 mm

Maximum Vent Height*

2400 mm

Bottom Rail Profile Depth (4 rail)

21 mm

Bottom Rail Profile Height (4 rail)

21 mm

Minimum Profile Thickness

1,1 mm

Maximum Profile Thickness

2 mm

Glazing Thickness

8 / 22 / 10 mm

* Please consult regarding maximum weight and dimensions for other opening types and glass combinations.
