Description

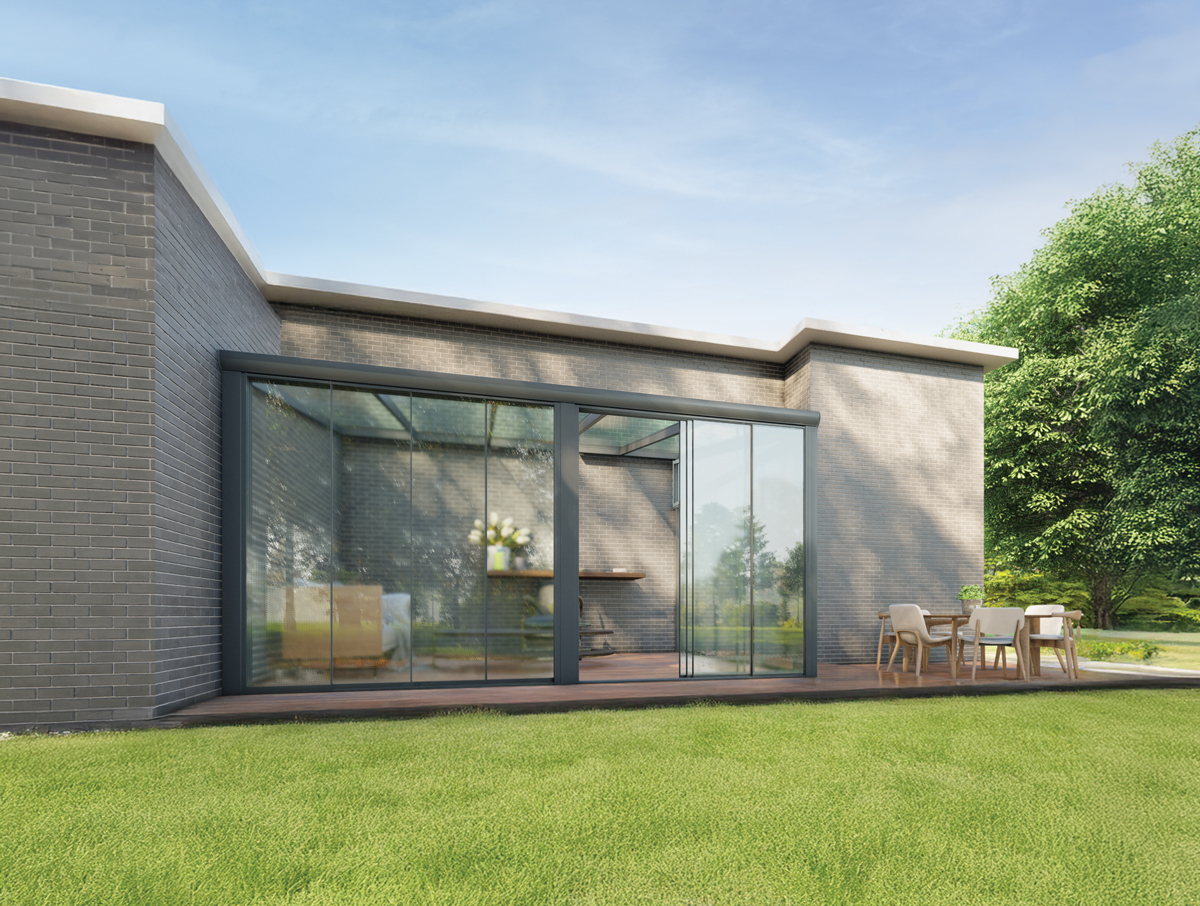

The Artos SSA 110 Sliding System is designed to combine functionality with aesthetics, offering a seamless and modern solution for various spaces. Its threshold-free bottom frame design ensures effortless passage, enhancing accessibility.

With a wide range of color and surface options, SSA 110 can be customized to complement different architectural styles. The system’s large glass surfaces and sleek profiles allow natural light to flood in, creating bright and inviting spaces.

Threshold-Free Design: Ensures effortless and barrier-free passage, enhancing accessibility.

Customizable Appearance: Available in various colors and surface finishes to match different architectural styles.

Slim and Elegant Profiles: Maximizes glass area, allowing more natural light to enter.

Multi-Rail System: Offers flexibility with 3-rail and 5-rail bottom frame options.

Durable Structure: Features high-quality aluminum profiles with thicknesses ranging from 1.2 mm to 1.6 mm.

Versatile Glazing Options: Supports 8 mm to 10 mm glass thickness for different insulation needs.

Smooth Operation: Designed for easy sliding with minimal effort.



Opening Types

Technical Properties

Vent Profile Depth

16,4 mm

Vent Profile Height

59,9 mm & 67,6 mm

Maximum Vent Weight

65 kg

Maximum Vent Width

1000 mm

Maximum Vent Height*

2400 mm

Bottom Rail Profile Depth (3 rail)

70,2 m

Bottom Rail Profile Depth (5 rail)

110 mm

Minimum Profile Thickness

1,2 mm

Maximum Profile Thickness

1,6 mm

Glazing Thickness

8 – 10 mm

* Please consult regarding maximum weight and dimensions for other opening types and glass combinations.
