Description

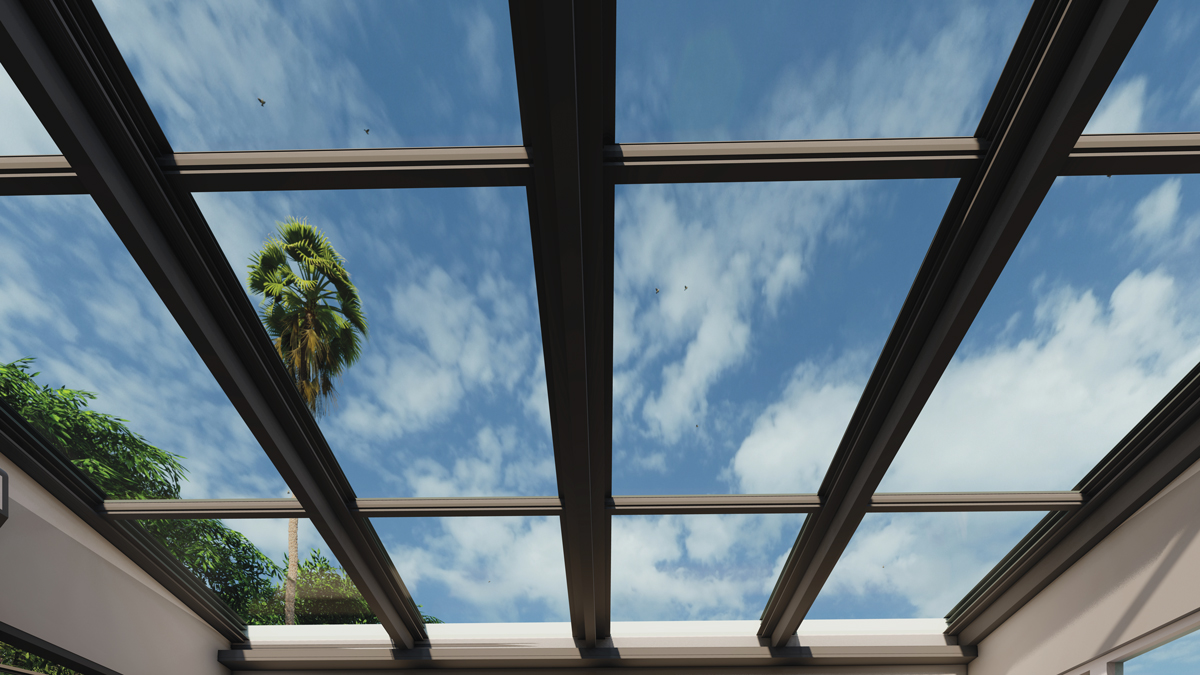

Lapis 150 is a motorized retractable glass roof system designed for versatile and seamless outdoor integration. With its extendable rail system, it offers 2, 3, or 4 panel configurations, ensuring adaptability to different space requirements. The system provides a limitless horizontal span, making it suitable for large-scale applications. Designed for durability and aesthetic appeal, Lapis 150 is equipped with thermal glass roofing and can be installed as a freestanding structure or integrated with an existing support system.

Unlimited Horizontal Span: The system can be extended indefinitely along the horizontal axis

Motorized Opening Mechanism: Available with 2, 3, or 4-panel configurations for a smooth and effortless sliding operation

Integrated Guttering System: The drainage system is seamlessly incorporated into the supporting structure

Low Maintenance: Designed for long-term durability with minimal upkeep requirements

Freestanding Installation Option: Can be mounted independently without additional structural support

 Thermal Glass Roofing: Ensures enhanced insulation and energy efficiency

LED Lighting: Integrated LED lighting for enhanced aesthetics and functionality.

Technical Properties

Mullion Width

73 mm

Mullion Height

89 mm

Front Post

170*125 mm

Back Post

170*125 mm

Max. Depth

4,5 m

Max. Spacing Between Two Supports*

4,5 m

Min. Ceiling Slope

7,5° mm

Led Lighting

✓

Glazing Thickness

30 mm
