Description

Logan GSAL 100 motorized vertical sliding system is an ideal architectural solution for creating transparent and stylish spaces, especially in hotels, restaurants, patisseries, cafes, winter gardens, and balcony applications. The system’s glass panels move vertically up and down, opening and closing safely and efficiently.

Different motor power options can be selected based on the requirements of the application area. The system features fully tempered glass panels, and the number of panels can be configured as either two or three according to preference. Operation can be managed via remote control or a manual button.

The glass panel wings of the GSAL 100 motorized vertical sliding system operate vertically up and down, allowing safe and quick opening and closing. The glass used in the system is fully tempered. The wings can be operated by remote control or manually with a button.

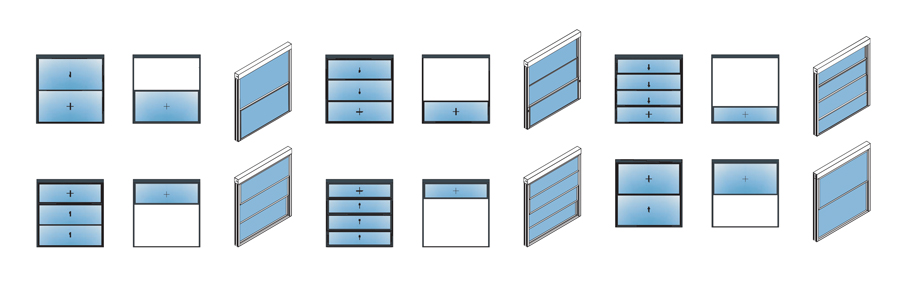

Opening Types

Technical Properties

Carrying Capacity for Each Motor*

225 kg

Maximum Vent Width*

3500 mm

Maximum Vent Height*

4000 mm

Minimum Frame Width*

96,8 mm

Minimum Frame Height*

13,9 m

Vent Profile Width*

26,2 m

Vent Profile Height

35 mm

Minimum Vent Profile Thickness

1,2 mm

Maximum Vent Profile Thickness

2,2 mm

Glazing Thickness

8-22 mm

* Please consult regarding maximum weight and dimensions for other opening types and glass combinations.
