Description

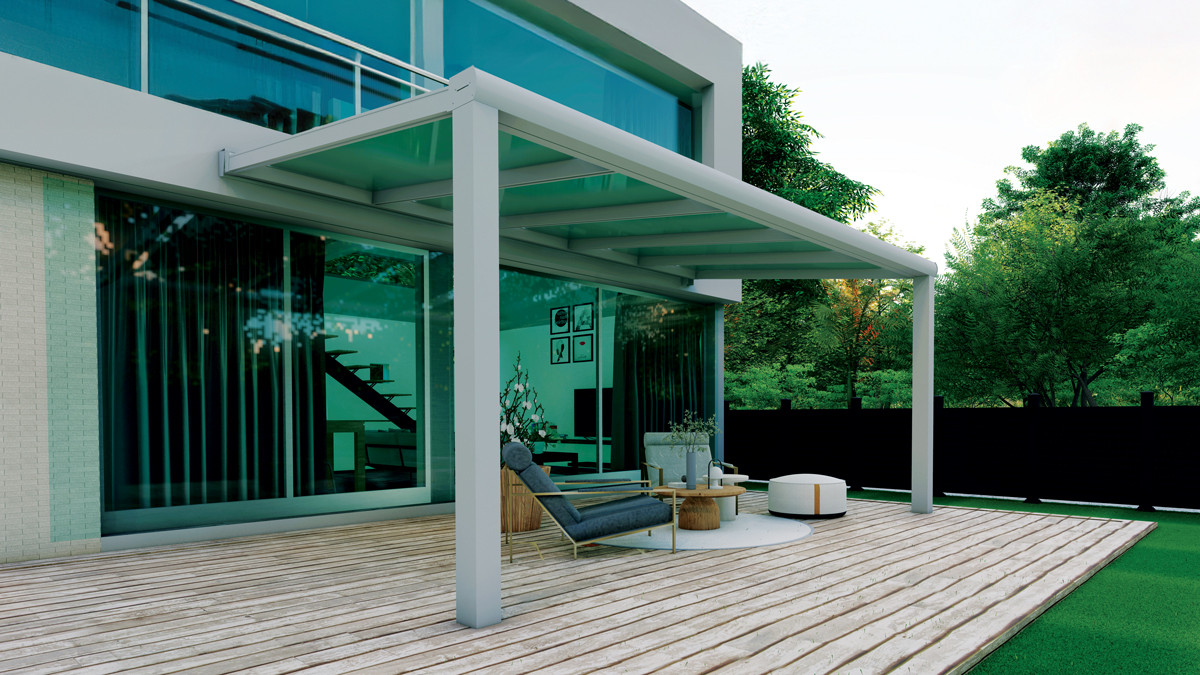

Ural Amber 156 with different type of gutter, wall connection, and mullion options that have a minimal look, providing airy spaces with a sense of uninterrupted calm. This system can be combined with thermally efficient sliding and window system series, offering a high-quality product that allows the Client to enjoy outdoor space all year round.
Available Depth: Ural Amber 156 can span up to 3.5 meters (glass length) to cover areas based on static calculations. Please check the calculation diagram, as depth dimension also depends on the number of partitions.
Unlimited Length: The length is unlimited, allowing your customers to cover the whole length of their building. Standard lengths include 4m, 5m, 6m, and 7m; any of these can be joined together to create a bespoke length.
Integrated Guttering: Guttering is integrated into the veranda frame for a minimal look.
Available in Any RAL Color: The most common color code, Anthracite Grey (RAL 7016), is available as standard. All other RAL colors are also available.
4.5m Between Posts: There is a 4.5-meter spacing between the posts for an almost undisturbed view.
Simple Fixing System: For quick and easy installation.
LED Lighting: Integrated LED lighting for enhanced aesthetics and functionality.
High-Quality Glazing: Supports glazing thickness between 8 mm – 10 mm and polycarbonate panels up to 16 mm.
Low Maintenance: All parts of Ural Amber 156 have low-maintenance features that save customers time and money.
Technical Properties
|
Mullion Width |
55 mm |
|
Mullion Height |
96 mm |
|
Front Post |
100*120 mm |
|
Back Post |
100*120 mm |
|
Max. Depth |
3,5 m |
|
Max. Spacing Between Two Supports* |
4,5 m |
|
Ceiling Slope |
5° – 7,5° mm |
|
Led Lighting |
✓ |
|
Maximum Polycarbonate Thickness |
16 mm |
|
Glazing Thickness |
8 mm – 10 mm |
